Product Overview

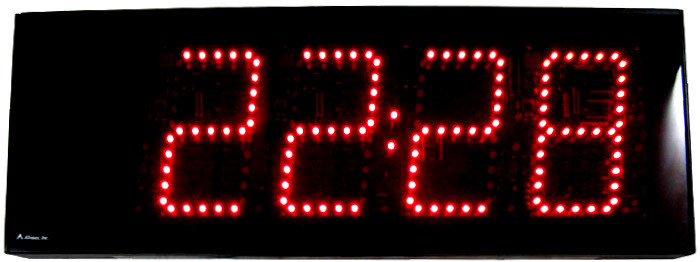

Four-Digit Display, 5" High Digits, Red LEDs, Metal Frame.
Features
- Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.
Specifications
- Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
Mounting methods
- Standard mounting is 2 key hole slots spaced 16inch apart for wall mounting.There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.
Documentation
Warranty Information
One year warranty included. Extended warranties available; details in options.
