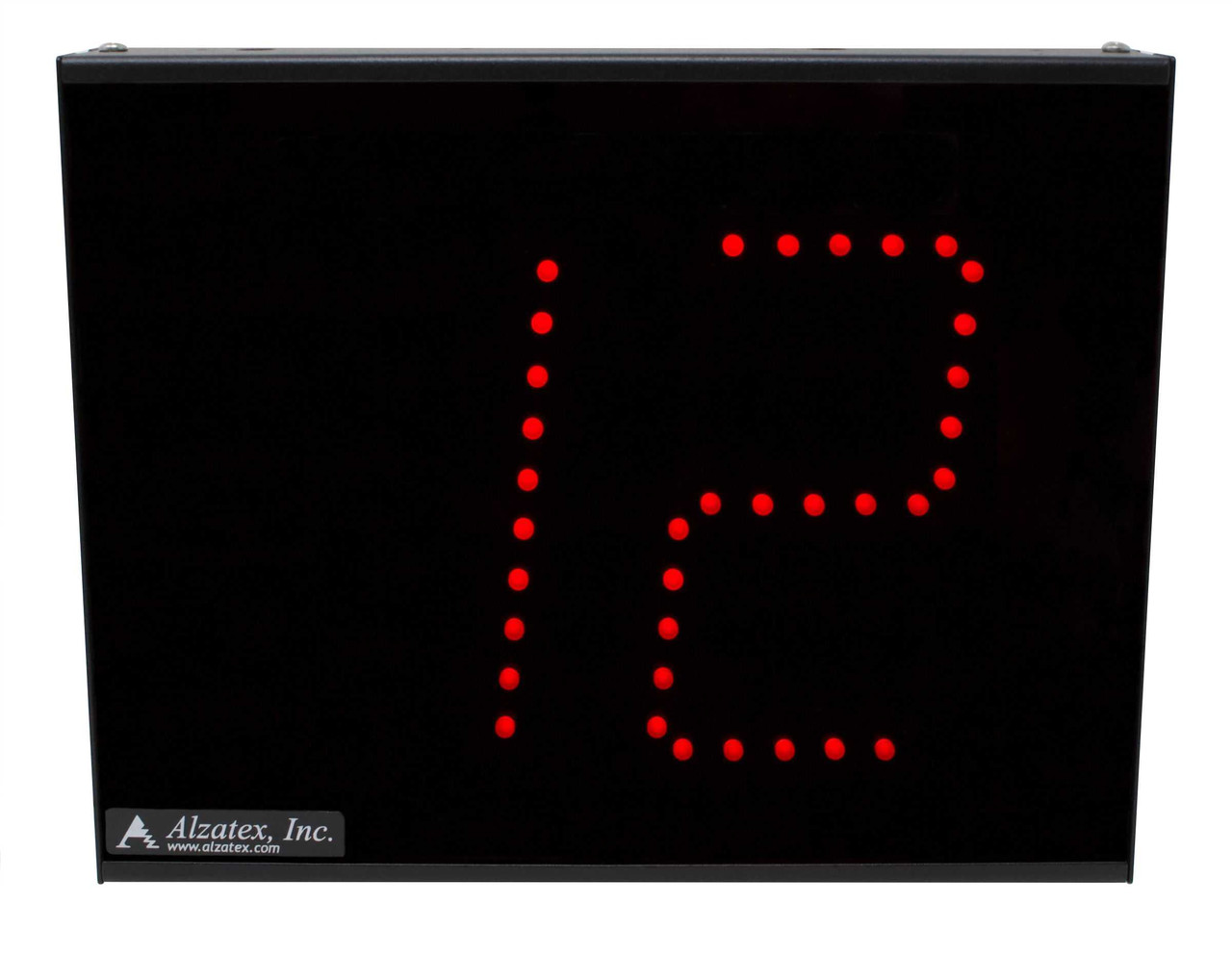

Two-digit LED Display, 5" Digits (dsp502b)

Hover over image to zoom

  • Image 1
$349.00
SKU:
dsp502b
Weight:
3.10 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout

 Product Description

Two-Digit Display, 5" High Digits, Red LEDs, Metal Frame.

Features

    Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Two-digit count up timer settable to Day, Hour, Min or Sec.Two-digit count down timer settable to Day, Hour, Min or Sec.

Features with optional button module

    Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).User-programmable stored settings.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Button to turn beeper on/off.

Specifications

    Two RJ45 modular connectors for RS422 serial data transmission and reception.Two RJ11 modular connectors for accessories.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Mounting methods

    Standard mounting is 2 key hole slots spaced 9 inches apart for wall mounting.There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.There is one 1/4-20 nut on the bottom of the unit for attaching camera style tripod.

Documentation

Cutsheet
