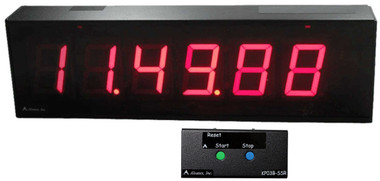

Six-Digit Race Clock, 2-1/3" High Digits, Solid-Segments, Integrated Count Up Timer with Lap Display, Remote Keypad, Metal Frame - Includes Infrared remote and Power Supply.
Features
Convenience is important to most people. This gives you an advantage as Alzatex products are easy to use. The real benefit to you is a very quick learning curve.Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.LED seven-segment display with 2.33 inch high digits.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 70mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
Documentation
Cutsheet
