Product Overview

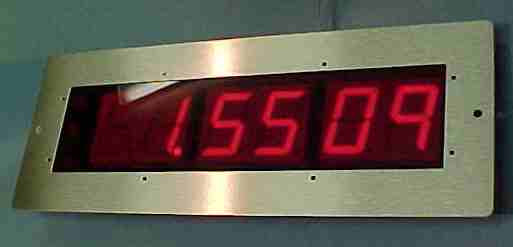

Six-Digit Display, 2-1/3" High Digits, Solid-Segments, Stainless steel front panel.
Features
- Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.
Specifications
- Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 80mA maximum per digit.Construction: Metal enclosure, Flush mount stainless steel finish with transparent red acrylic front.
