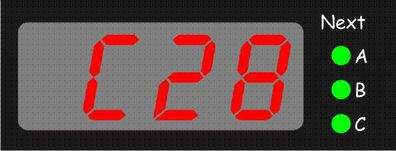

Take-a-number Window Terminal, 1" Digits (dsp104a_tat)

Multi-Window Window Service Terminal with Buttons for up to 4 Service Types - Customizable.

Features

This is a 4-digit Display with 1" high digits.

This Display may be wall-mounted or placed on a table top.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Ground closure inputs to remotely start, stop or reset the timer.

Power connector (2.1x5.5mm).

Test button for testing and configuration.

Power requirements: 10-15VAC or 12-20VDC.

Current consumption: 180mA max.

Construction: Metal enclosure, black powder coated finish.

Documentation

Cutsheet
