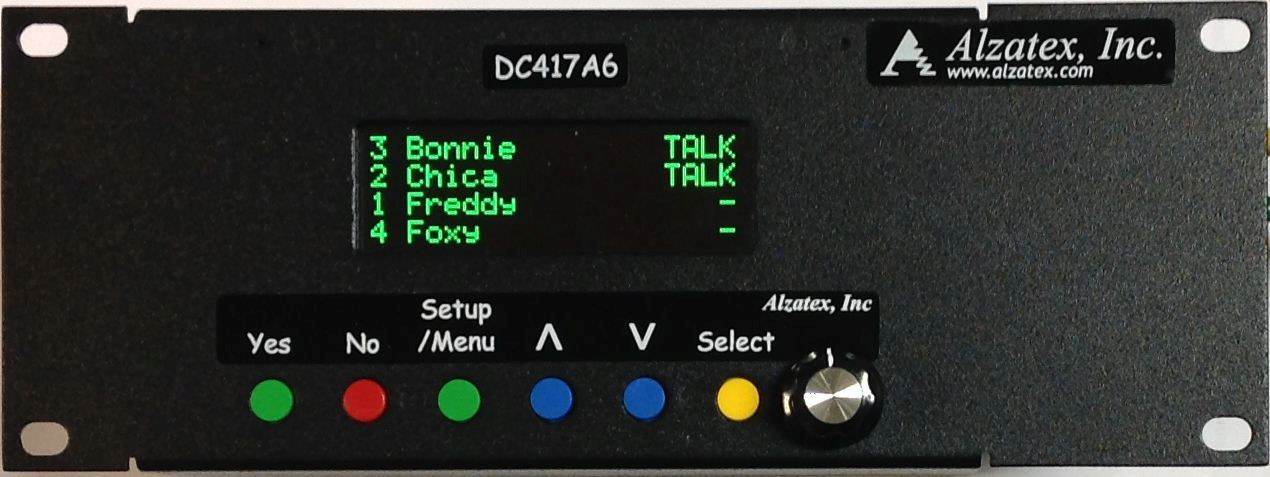

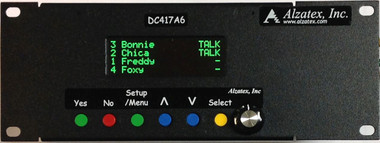

Queuing System Master Control Rack (dc417a6_rm)

Queuing System Master Controller (holds up to 4 lists of 64 names) (Rack-mount).

Features

Simple system

This Queuing System can be used as a simple stand alone system.No computer required except for setup and name changes.Setup is performed on an easy to use web page.Bright OLED display is easy to read even at steep angles.Stations may be ordered in any order using the virtual station numbering feature.Up to 4 lists of names may be stored in the system.Each list can have up to 64 names.Just select the desired list and make it the live list.

Full featured system

Connect this system to your Internal network and take advantage of the advanced features.The system has a full built-in web server with web pages to access all features.Online help provides easy access to setup instructions.Show the request to speak list on as many computers as you desire.Virtual stations may be setup at locations that do not have physical stations.As long as you have and Internet connection or VPN, the system can be controlled from anywhere in the world.A request to speak console permits a clerk or moderator to have full control of the request to speak system.A electronic voting console permits a clerk or moderator to have full control of the electronic voting system.Show the vote results on your computer(s) or on large screen display connected to your computer.

Specifications

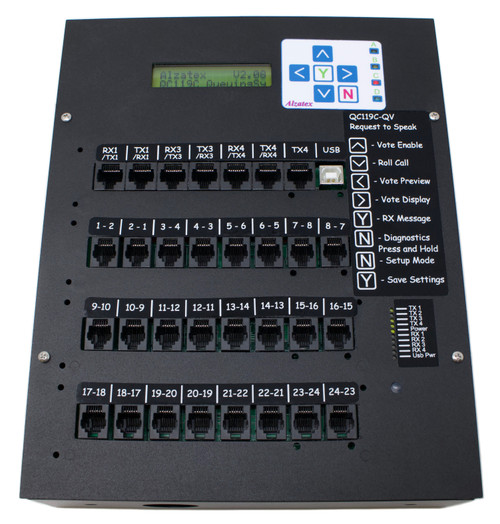

Input and output to connect to the QC119C hub(s).Ethernet connection for setup and operation.Ethernet connection supports MDIX (auto corrects for reverse pairs and reverse polarity).Connection for optional Request to Speak display.Four line 4X20 OLED lighted display.Input to connect to DC417A6 controller.Output to daisy chain additional displays.Fits standard 1/2 rack width.DC417A6QRM Dimensions: 9.5" x 3.5" x 2.5".

Documentation

Cutsheet
