To use, this item requires a keypad and power supply. Not included. Must be ordered separately.
Shipping:
Calculated at checkout
Minimum Purchase:
unit(s)
Maximum Purchase:
unit(s)
:
Gift Wrapping:
Product Description

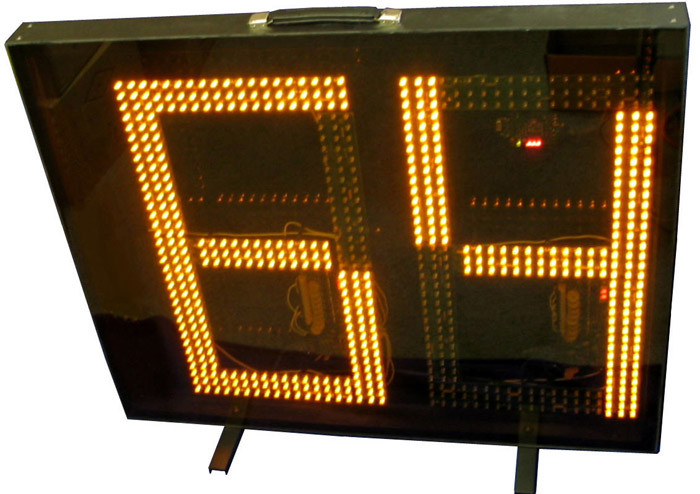

Two-Digit Display, 24" High Digits, Super Bright Red LEDs, Metal Frame.FeaturesTwo-digit count up timer settable to Day, Hour, Min or Sec.Two-digit count down timer settable to Day, Hour, Min or Sec.Features with external keypadRF wireless module permits the displays to be controlled remotely.Built-in time-of-day clock displays hours/minutes/seconds in 12/24 hour time.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.History memory records the 64 most recent events.Connect two or more TimeKeepers™ together. One becomes the timer and the others become Remotes.Can be powered from DC power or from external 12V battery (see Options).SpecificationsTwo IP66 rated connectors for power and RS422 serial data transmission and reception.Test button for testing and configuration.Power requirements: 12-16VDC.Current consumption: 940mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.DocumentationCutsheet
