Product Overview

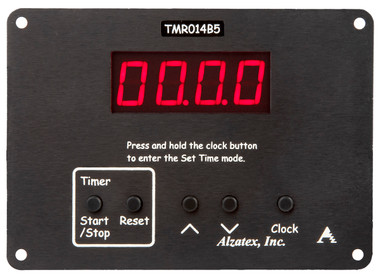

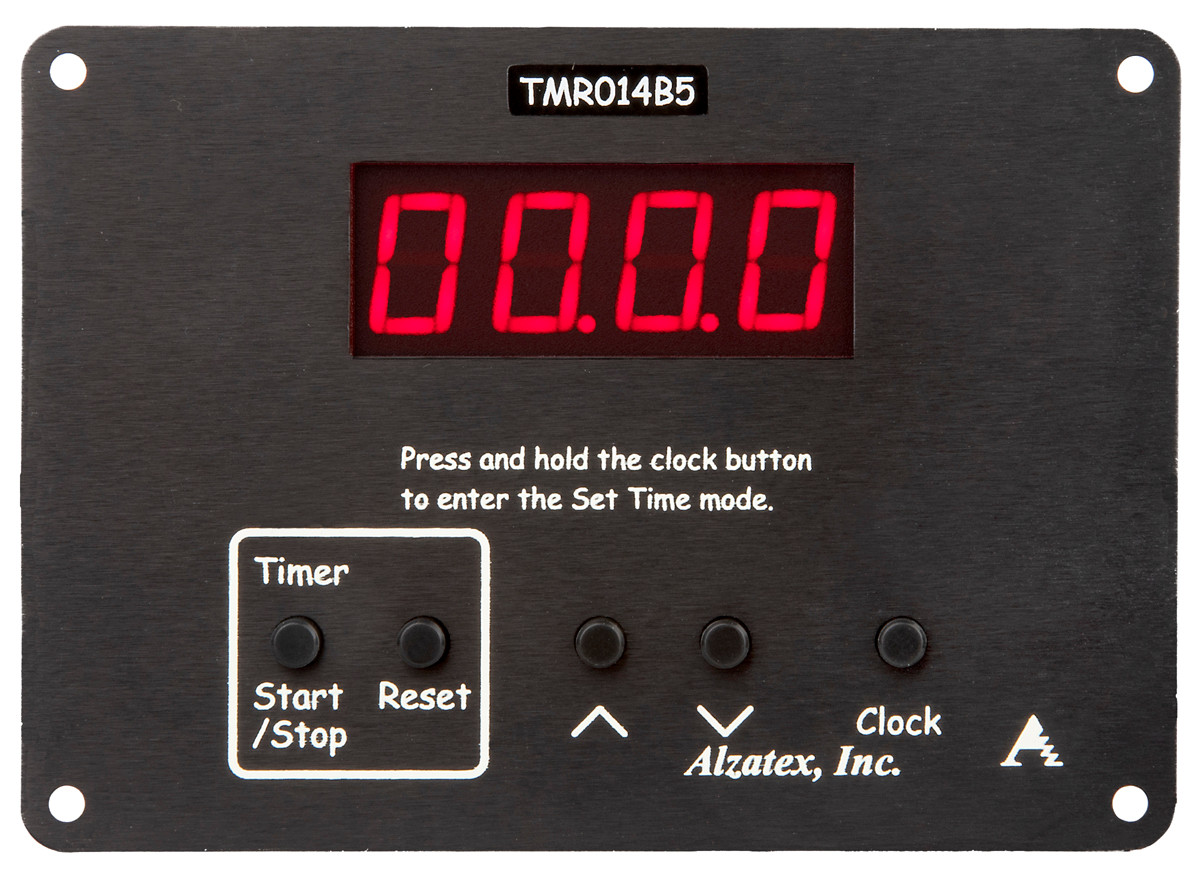

Count Up/Down Timer with time-of-day clock and 5 buttons, four remote ground closure inputs, ground closure outputs, 6-18VAC Power, Black, flush-mount.
Features
- Count Down Timer. (0 to 99.59 MM:SS).Count Up Timer.Built-in time-of-day Clock displays hours/minutes in 12/24 hour time or minutes/seconds.Press Reset to select timer mode.Press the up/down buttons to set desired time to the nearest minute.Press the Start/Stop button to start the timer.Four-digit LED seven-segment Display with 0.56" high digits.Made of ruggedized aluminum construction.
Specifications
- Ground closure inputs to start, stop and reset the timer.Optically isolated inputs for Start, Stop and Reset.Remote inputs operate on a 6 to 24VDC signal.Ground closure 800mA output for optional beeper. (not included).Ground closure 800mA output indicates timer running state.Ground closure outputs can drive resistive or inductive loads.Power requirements: 6-15VAC or 8-20VDC.Current consumption: 100ma.Construction: Metal flush mount plate, black powder coated finish.
