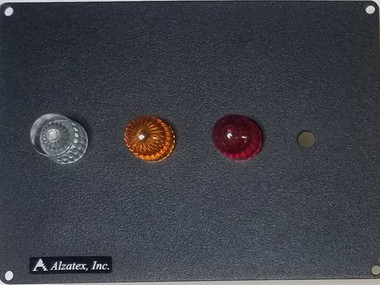

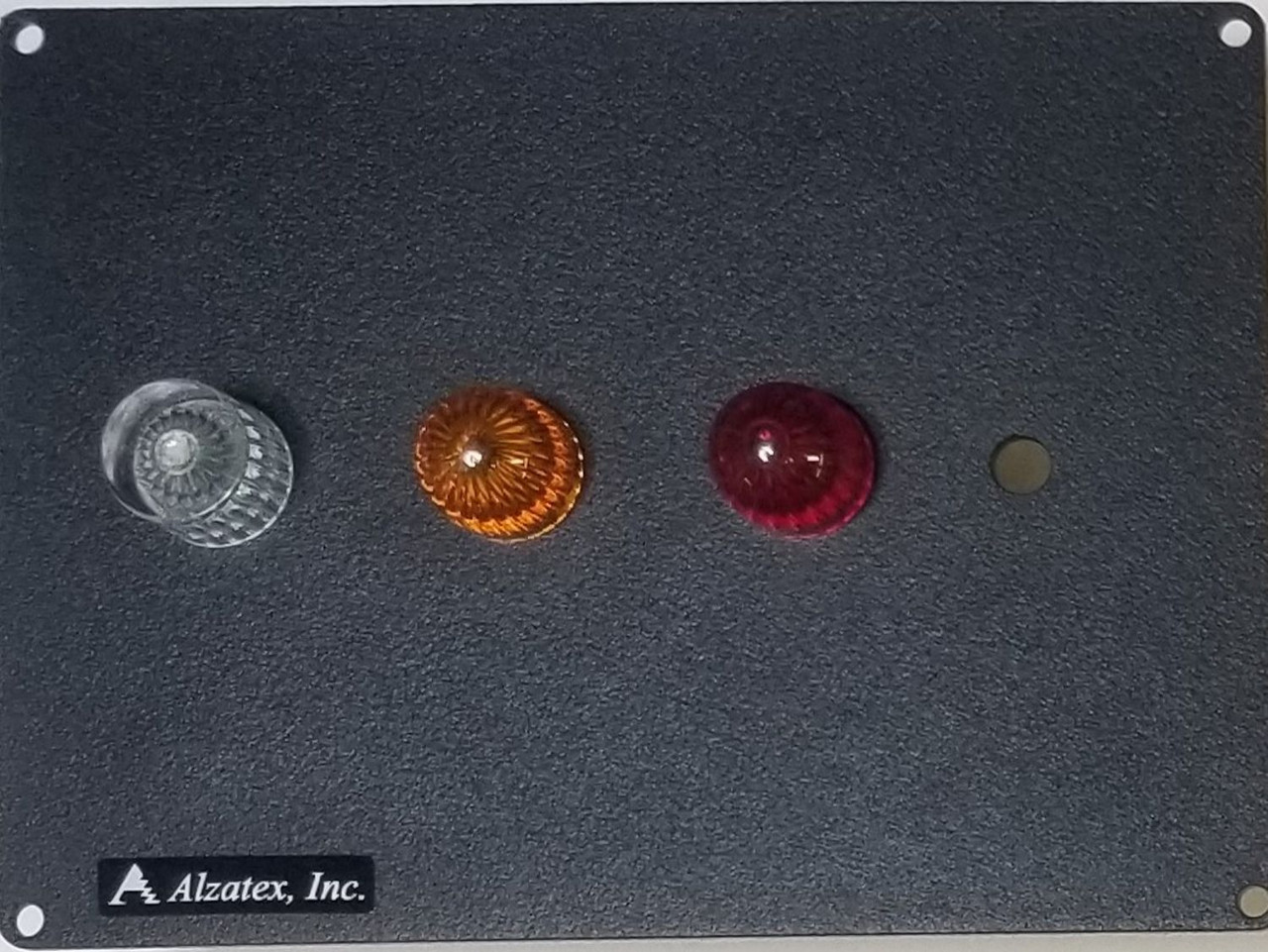

Flush Mount Red-Yellow-Green Indicator (ryg13b)

Flush-mount Red-Yellow-Green unit, 1/2" diameter dome LEDs without beeper (black metal plate).

Features

Flush Mount Red-Yellow-Green Indicator. Red-Yellow-Green Audience signal lights. Works with The TimeKeeper™, Alzatex, Inc.’s zero-to-99.59-minute Count Up/Down Timers. May be powered using AC or DC. Low power consumption. Optional built-in internal beeper. The Count Up/Down TimeKeeper™ can enable or disable the beeper. Green-Talk; Yellow-Wrap it up; Red-Done LED Indicators.

Specifications

RJ45 modular connector for RS422 serial data input. RJ11 modular connectors for serial data input. Solder terminals for optional loud beeper. Construction: Metal flush mount plate, black powder coated finish. Power requirements: 10-13VAC or 12-15VDC. Current consumption: 100mA.

Documentation

Cutsheet
