Four Channel Module SPDT Relay Outputs (rly15br)

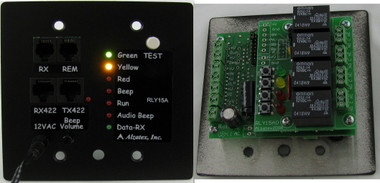

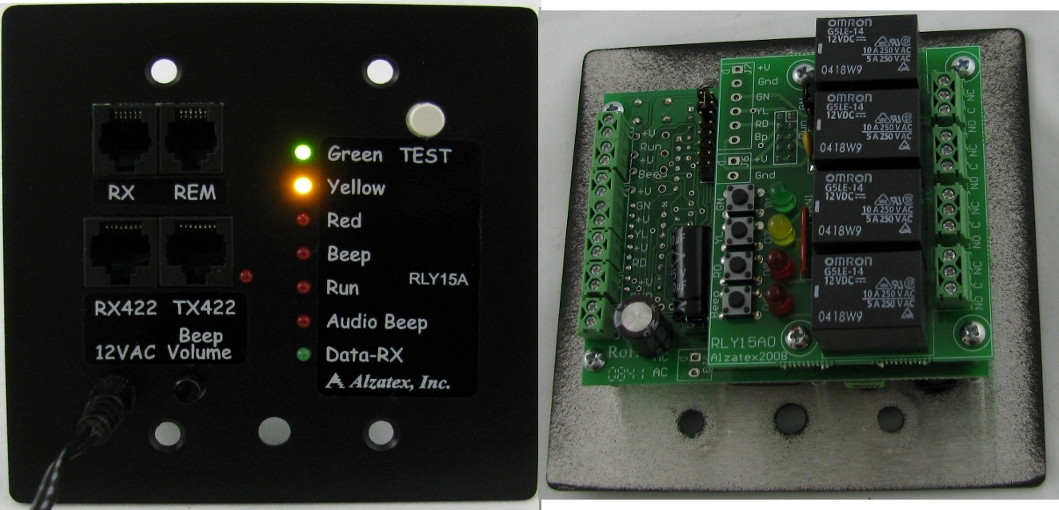

Flush-mount four channel relay module to operate up to four devices or to control Red-Yellow-Green and beeper with programmable beep tones, and connector for external speaker (black metal). Fits into double gang electrical box.

Features

Works with The TimeKeeper™, Alzatex, Inc.’s zero to 99.59 minute Count Up/Down Timers.Remotely control any device from a PLC, Crestron, AMX or computer.Multiple devices may be daisy chained in a single system.Each unit is uniquely addressable with one of 32 addresses.Green-Talk; Yellow-Wrap it up; Red-Done LED indicators.Built-in beep tone generator with 2 watt audio amplifier output to directly drive 4-16 ohm speakers.The Count Up/Down TimeKeeper™ can enable or disable the beeper.The volume control permits you to set the volume level for the user-programmable audible tones.The unit mounts in a standard double gang electrical box.

Specifications

RJ11, RJ45 and Power connectors.Audio output (2 watt) for a speaker, that will generate user-programmable audible tones.The SPDT relay outputs can drive loads of up to 5AMP per output.Ground closure 200mA output for optional beeper. (not included).Ground closure 200mA outputs for Green, yellow, red status and running status.Ground closure outputs can drive resistive or inductive loads.Construction: Metal flush mount plate, black powder coated finish.Power requirements: 10-13VAC or 12-15VDC.Current consumption: 50mA to 950mA depending on load.

Documentation

Cutsheet

RLY15A Indicator Installation Manual

RLY15A Indicator Installation Manual
