Ground Closure Module 5 GC Outputs (rly15a_gc)

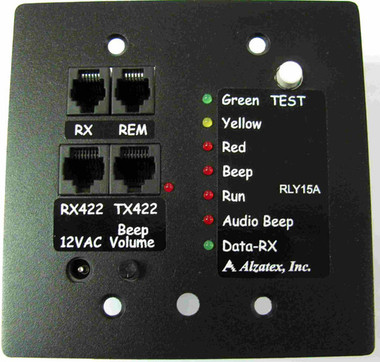

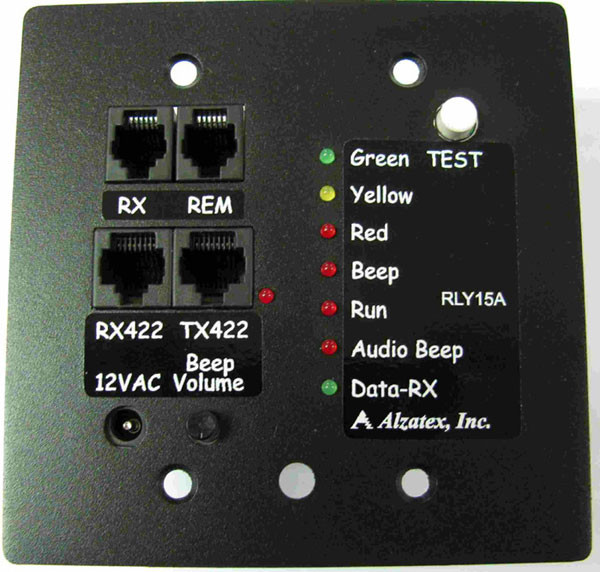

Flush-mount five channel module with ground closure outputs to operate up to five devices or to control Red-Yellow-Green, beeper and run status with programmable beep tones, and connector for external speaker (black metal). Fits into double gang electrical box.

Features

Works with The TimeKeeper™, Alzatex, Inc.’s zero to 99.59 minute Count Up/Down Timers.Remotely control any device from a PLC, Crestron, AMX or computer.Multiple devices may be daisy chained in a single system.Each unit is uniquely addressable with one of 32 addresses.Green-Talk; Yellow-Wrap it up; Red-Done LED indicators.Built-in beep tone generator with 2 watt audio amplifier output to directly drive 4-16 ohm speakers.The Count Up/Down TimeKeeper™ can enable or disable the beeper.The volume control permits you to set the volume level for the user-programmable audible tones.The unit mounts in a standard double gang electrical box.

Application with a take-a-number system

One rly15a_gc required for every 4 single service windows.The rly15a_gc has 4 ground closure outputs to operate LED indicator lamps.The rly15ar has 4 relay outputs to operate Incandescent indicator lamps.Audio alert with programmable beep tones to indicate next person being served.

Specifications

RJ11, RJ45 and Power connectors.Audio output (2 watt) for a speaker, that will generate user-programmable audible tones.Four ground closure inputs to connect remote buttons and/or sensors.Ground closure 200mA output for optional beeper. (not included).Ground closure 200mA outputs for Green, yellow, red status and running status.Ground closure outputs can drive resistive or inductive loads.Construction: Metal flush mount plate, black powder coated finish.Power requirements: 10-13VAC or 12-15VDC.Current consumption: 50mA to 950mA depending on load.
