Dual LED Display 5IN Display RYG (dsp518b0)

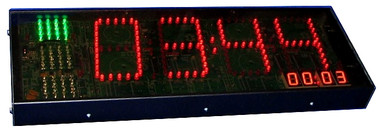

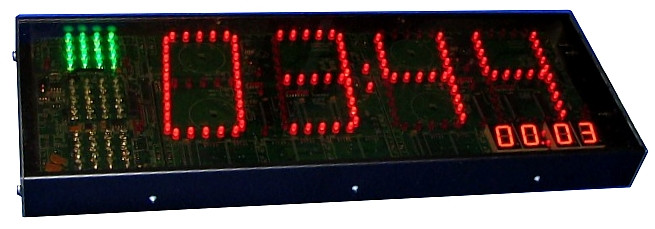

Four-Digit Display with 5" High Digits and Red LEDs, Four-Digit Display with 1" High Digits, 2" x 2" LED Clusters, in Common Metal Enclosure.

Features

Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Hour:Min, Min:Sec, or Sec.Hundredths.Four-digit count down timer settable to Hour:Min, Min:Sec.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 150mA maximum per digit.Construction: Metal enclosure, black powder coated finish with smoke grey acrylic front.

Features with optional button module

Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).User-programmable stored settings.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Button to turn beeper on/off.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 70mA maximum per digit.Construction: Metal enclosure, black powder coated finish with smoke grey acrylic front.

Mounting methods

Standard mounting is 2 key hole slots spaced 16inch apart for wall mounting.There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.

Documentation

Cutsheet
