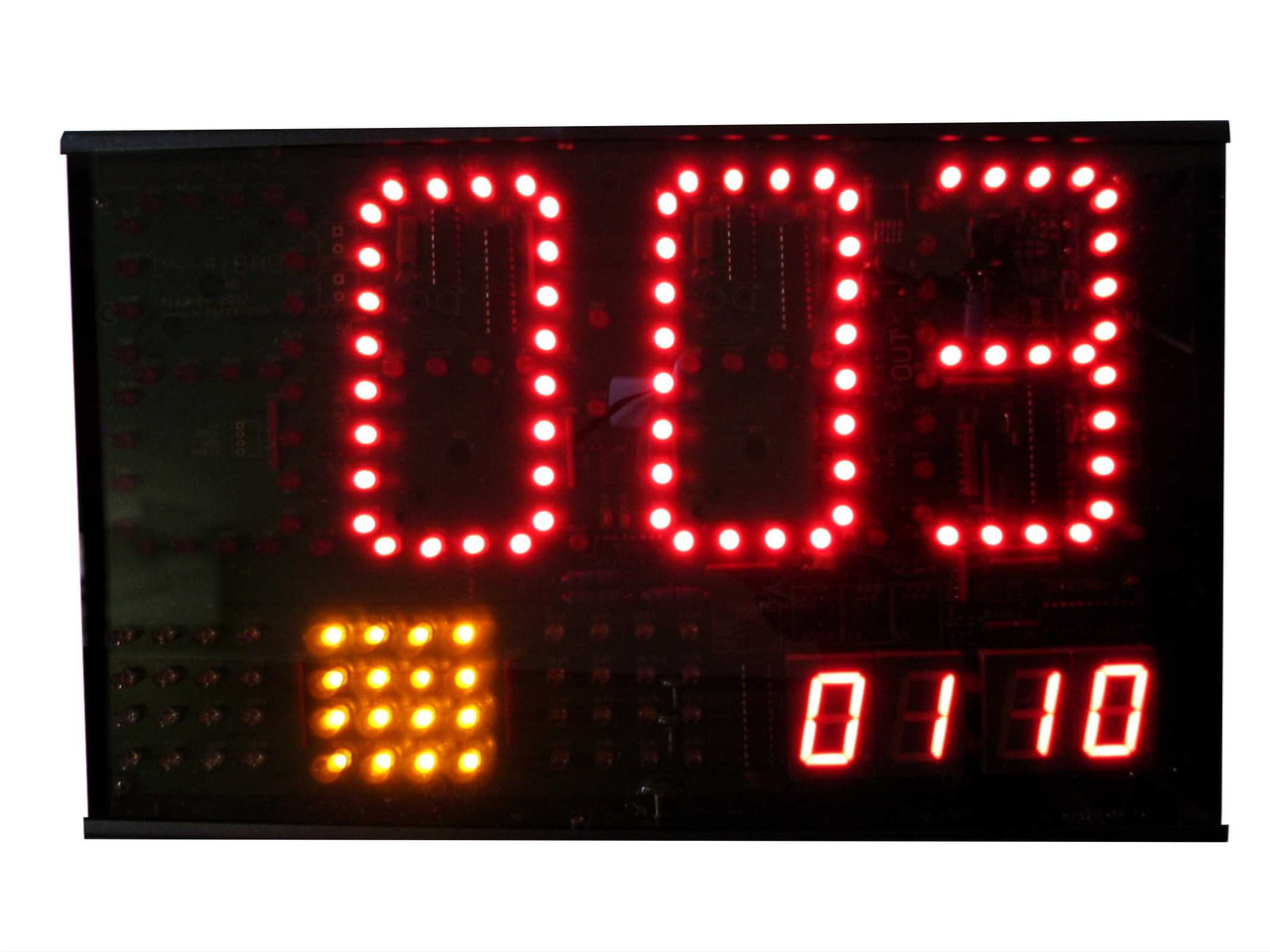

Four-Digit Display with 4" High Digits and Red LEDs, Four-Digit Display with 1" High Digits, 2" x 2" LED Clusters, in Common Metal Enclosure.
Features
Four-digit Large 4" LED Display.Four-digit Display with 1" high digits.Green-Yellow-Red Display with 2"x2" LED clusters.Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Hour:Min, Min:Sec, or Sec.Hundredths.Four-digit count down timer settable to Hour:Min, Min:Sec.
Features with optional button module
Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).User-programmable stored settings.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 70mA maximum per digit.Construction: Metal enclosure, black powder coated finish with smoke grey acrylic front.
Documentation
Cutsheet
