Product Overview

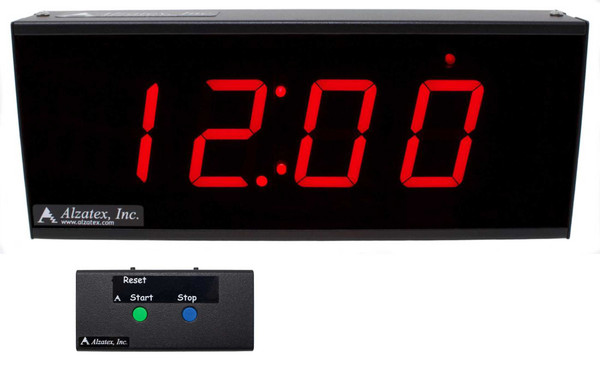

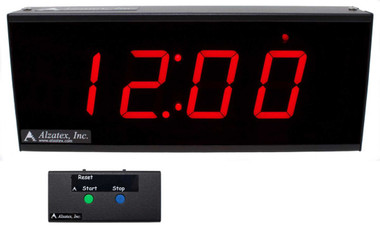

Four-Digit Race Clock, 2-1/3" High Digits, Solid-Segments, Integrated Count Up Timer with Lap Display, Remote Keypad, Metal Frame - Includes external keypad and Power Supply.
Features
- Convenience is important to most people. This gives you an advantage as Alzatex timers are easy to use. The real benefit to you is a very quick learning curve.Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.LED seven-segment display with 2.33 inch high digits.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.
Specifications
- Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 70mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
Documentation
Warranty Information
One year warranty included. Extended warranties available; details in options.
