Product Overview

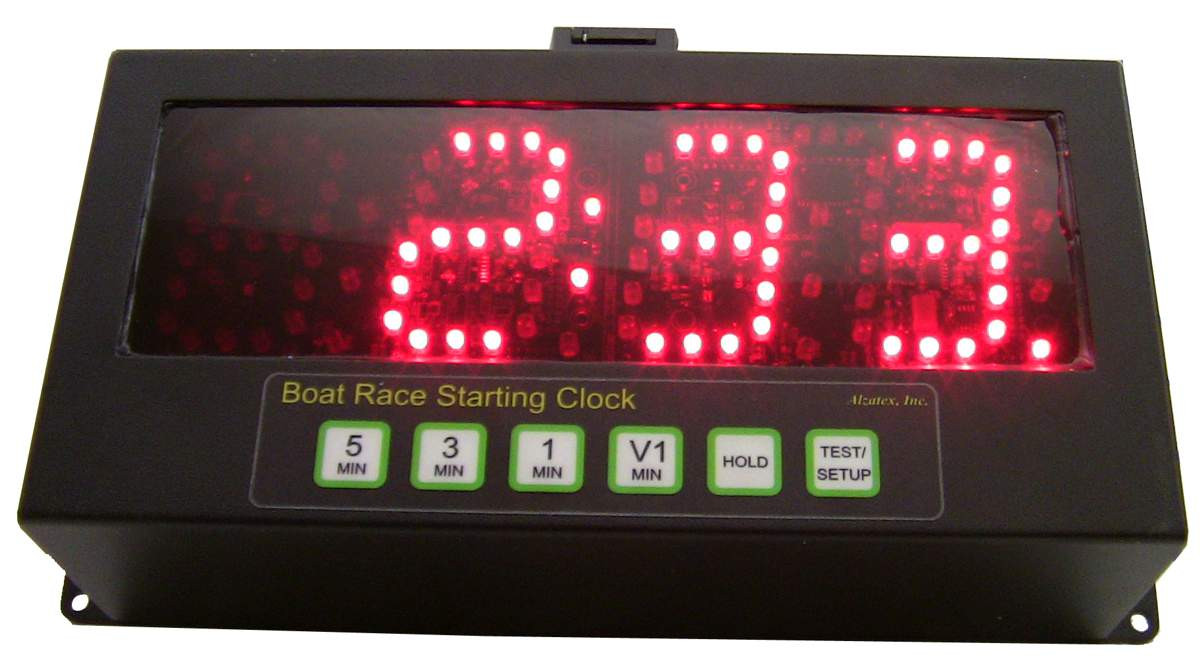

Four-Digit Display, 2.5" High Digits, Red LEDs, six Waterproof Buttons in Water Resistant Enclosure.
Features
- Display shows M:SS in Mode 0 and switches from M:SS to SS.T in.Mode 1 - See Setup Mode Section for how to switch.When timer reaches 0, display will show 0 for approximately 5 sec then go blank.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.
Controller Button Functions
- Button 1 (labeled 5 MIN) - Set timer for 5 min countdown, display shows 5:00.Button 1 (labeled 5 MIN) - Hold for approximately 2 sec to abort a timing cycle. The display shows - for several seconds, then goes dark.Button 2 (labeled 3 MIN) - Set timer for 3 min countdown, display shows 3:00.Button 3 (labeled 1 MIN) - Set timer for 1 min countdown, display shows 1:00.Button 4 (labeled V1 MIN) - Remove 1 min from current countdown, if timer already counting down it will not interrupt (ex. Time is 3:27, Button 4 pushed, Time is 2:27).Button 5 (labeled HOLD) - Hold to pause countdown, release to resume countdown.Button 6 (labeled TEST/SETUP) - Press to generates test patterns on display. The display shows Hello..:4..:..Button 6 (labeled TEST/SETUP) - Hold for approximately 2 sec to enter Setup Mode, display shows d09Button 6 (labeled TEST/SETUP) - In Setup Mode this changes controller display brightness, each successive press steps controller through 1 of 10 levels of brightness.
Options (Not included)
- Optional Relay Outputs.Relay outputs to operate auxiliary devices. Relay output A is programmed to come on at 1 minute and remain on until the timer reaches zero.User-programmable stored settings.Relay output B is programmed to come on at 3 seconds before zero and remain on until 3 seconds after the timer reaches zero.
Specifications
- RS232 Serial Data Output to computer or other device.Setup the serial port baud rate for radar gun input or output to auxillary devices or to a computer.Baud rates 1,200 to 115,200.Input Voltage Range: 12-14.5 Volts DC.Powered by 12 Volt Car Battery or Alternate Power Source.Test button for testing and configuration.Construction: Waterproof Metal enclosure, black powder coated finish with transparent red acrylic front.
