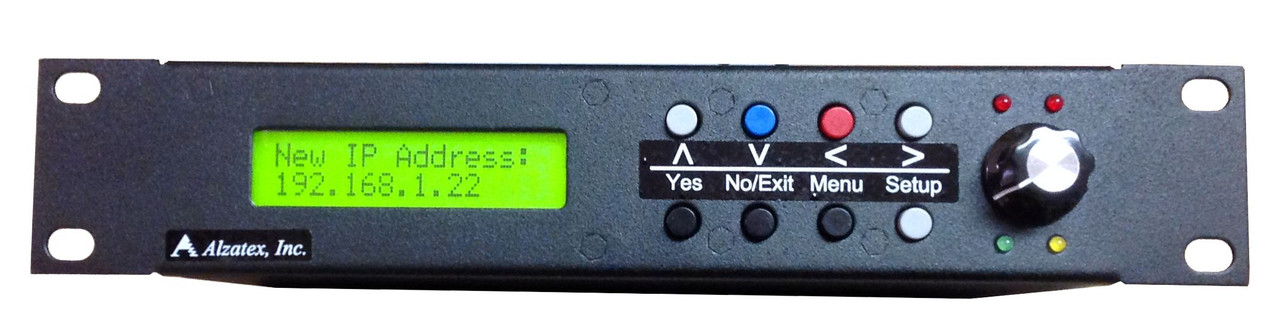

Controller with Ethernet (dc410a_prod)

Controller with Ethernet.

Features

Production Monitoring

Up to 8 production lines.Works with most types of sensors.Actual time to build elapsed Timer.TAKT Timer to set the pace.Green, Yellow and Red warning indicators have preprogrammed default settings, or may be custom programmed by user.

system

Integrated data capture of wait times holds up to 3000 events.Every transaction is time stamped so that complete data analysis can be performed.An unlimited number of events can be uploaded to a cloud hosting service.The results can later be analyzed. The cloud hosting service can generate charts and graphs from the data.Display results on any smart TV or computer that has a web browser.

Specifications

Three RJ45 modular connectors for RS422 serial data transmission and reception.Eight RJ45 modular connectors for RS422 serial data to operate additional displays.Power requirements: 10-16 VAC or 12-18 VDC power.Display: Backlit LCD Display with 2 lines of 16 characters.Current consumption: 400MA max.Construction: Metal enclosure, black powder coated finish.Fits standard 1/2 rack width.DC410A Dimensions: 9.5" x 8" x 1.75".

Documentation

Cutsheet
