Take-a-number System With Ticket Printer (alzw15b)

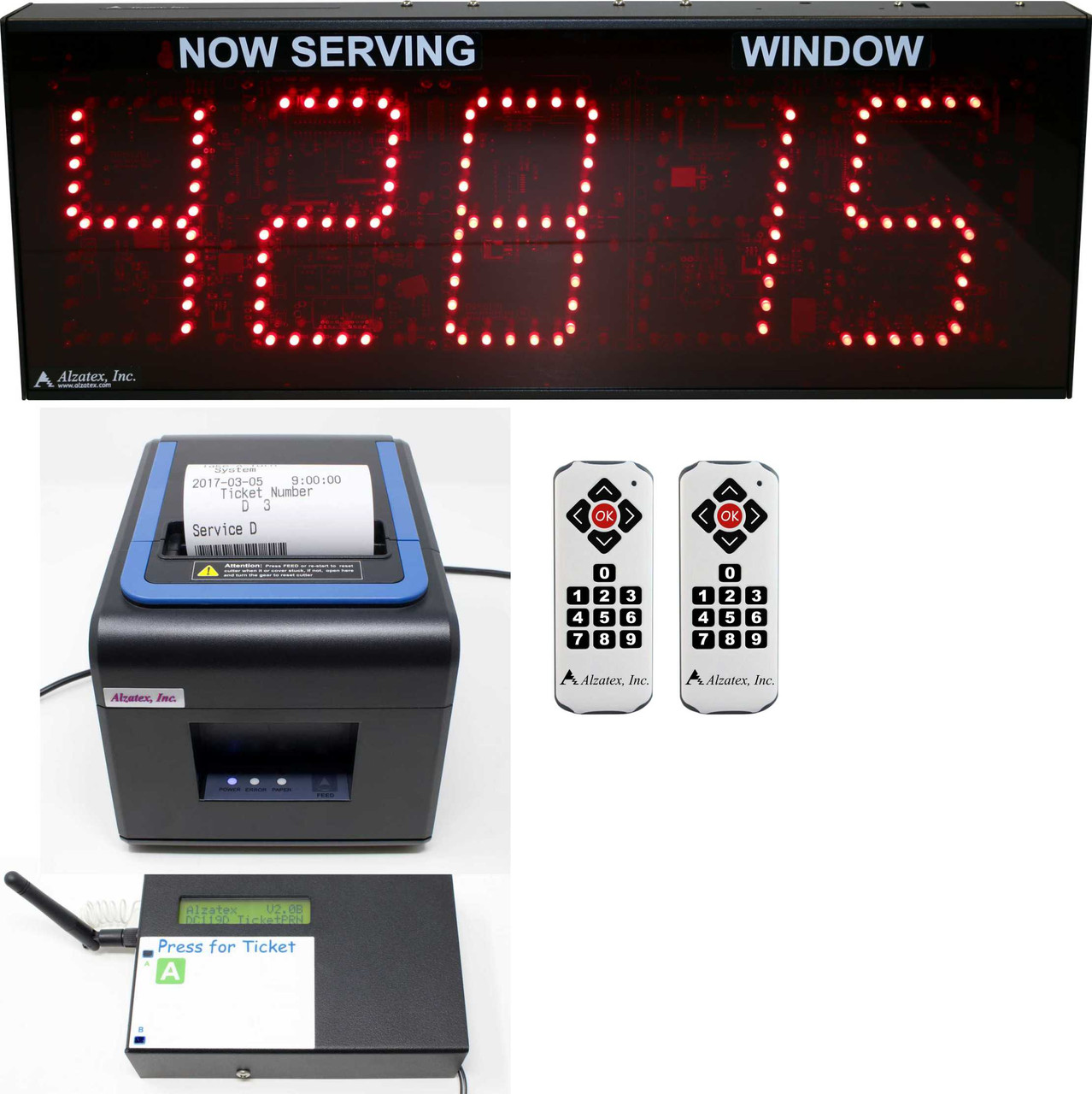

Multi-Window Take-a-Number System with Ticket printer and 5-digit lobby display. The display indicates ticket number and the window number. (for use with a single service).

Features

Wired version supports up to 16 windows.Wireless version supports up to 64 windows.Five-digit wall display shows ticket number and window number.Optional floor stand for the dispenser.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote button inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Documentation

Cutsheet
