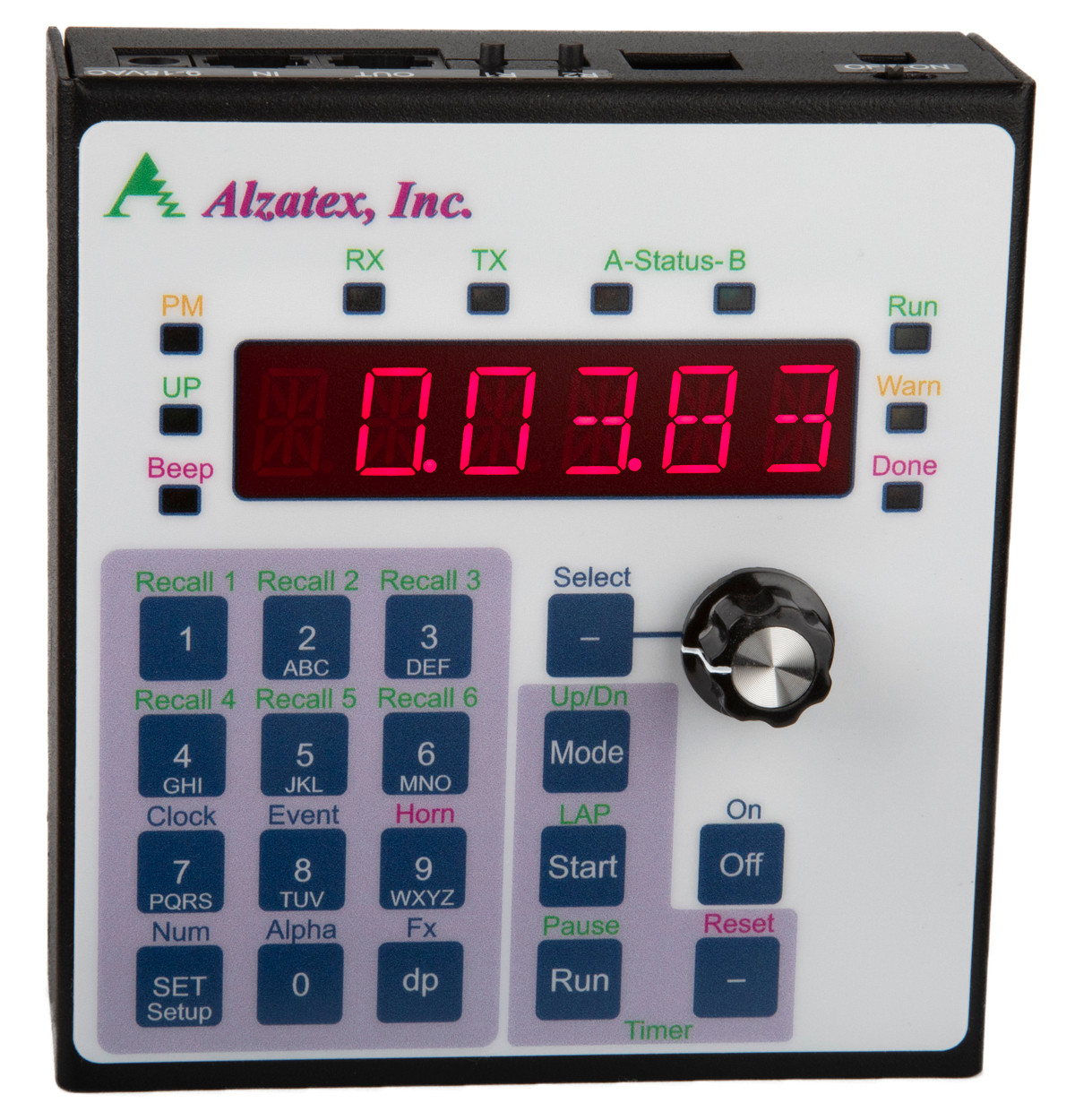

Clock/Timer, 6 Digits (tmr216b)

Surface-mount Count Up/Down Timer with time-of-day clock, six-digit LED Display, 6 stored presets, and Red-Yellow-Green LEDs.

Features

Six-digit LED fourteen-segment alphanumeric Display with 0.54" high digits.

Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.

Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.

Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Made of ruggedized aluminum construction.

Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).

User-programmable Green, Yellow and Red warning Indicators.

Internal beeper provides audible sound when the timer reaches zero.

Button to turn beeper on/off.Up to 6 user-programmable stored settings.

Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.

Optional 900MHz or 2.4GHz RF Wireless communications interface.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Solder terminals for optional loud beeper.

Construction: Metal enclosure, black powder coated finish.

Power requirements: 10-13VAC or 12-15VDC.

Current consumption: 100mA.
