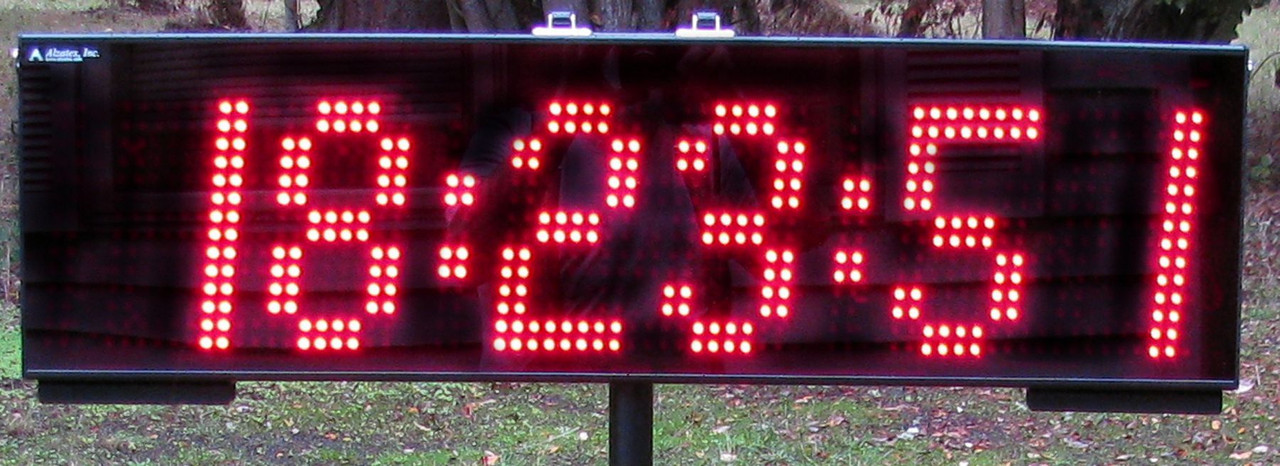

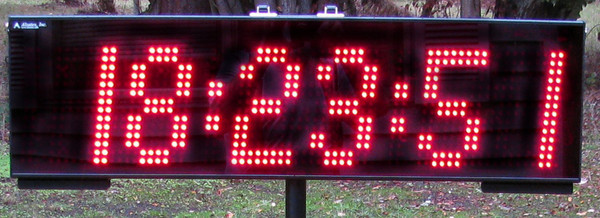

6-Digit, 7" Race Clock Sports Timer (spe706s)

6-Digit Race Clock with 7" high super bright red LED digits for sporting events, with handle, feet, water resistant enclosure, metal frame. Includes internal keypad and power supply.

Features

6-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.

6-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Power connector (2.1x5.5mm).

Test button for testing and configuration.

Power requirements: 10-15VAC or 12-20VDC.

Current consumption: 200mA maximum per digit.

Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Documentation

Cutsheet
