Remote control button input module (kp215afm_gc8led)

Remote control module with 8 LEDs, 8 ground closure inputs and 1 button with RJ45 jacks installs on a flush mount plate.

Features

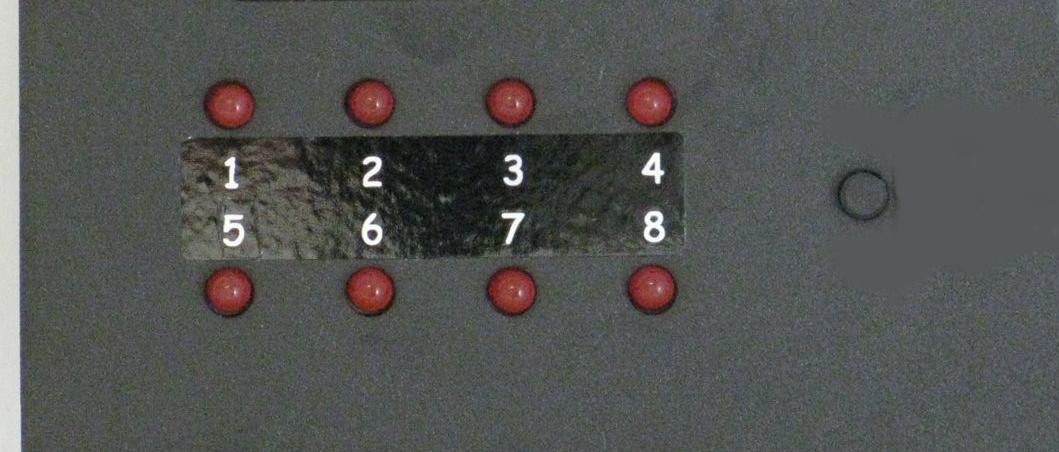

Keypad has 8 LEDs to indicate ground closure status and one button.

Eight ground closure inputs to connect remote buttons and/or sensors.

Programmable buttons to perform a variety of functions.

Factory programmed to fit your application.

Serial data output to send commands to a remote display, Timer or other device.

Serial data input to permit daisy chaining multiple keypads/controllers.

Specifications

RJ45 connector Receives RS422 data.

RJ45 connector transmits RS422 data.

Power over CAT-5 cable.

Eight ground closure inputs for Programmable functions.

Power requirements: 6-15VAC or 8-20VDC.

Current consumption: 90ma.

Construction: Metal flush mount plate, black powder coated finish.
