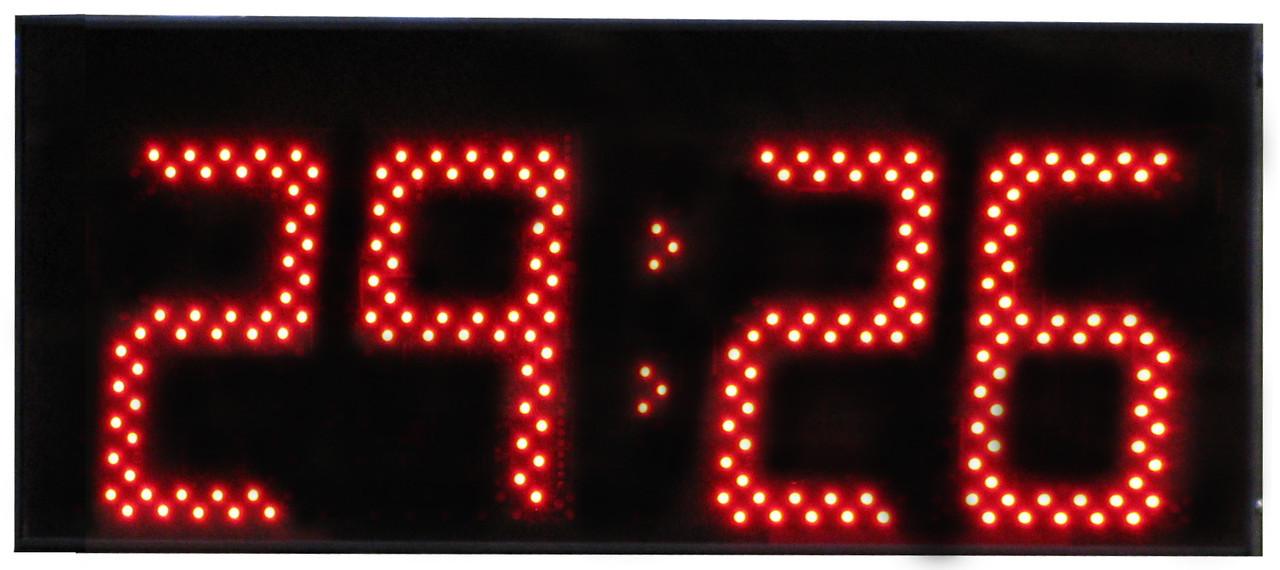

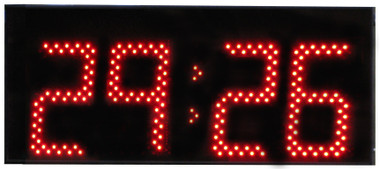

4-Digit LED Display, 7" Digits (dsp704b)

4-Digit Display, 7" High Digits, Super Bright Red LEDs, Metal Frame.

Features

4-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.

4-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Power connector (2.1x5.5mm). Test button for testing and configuration.

Power requirements: 10-15VAC or 12-20VDC.

Current consumption: 200mA maximum per digit.

Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

DSP704B Dimensions: 25.5" x 10.5" x 2.5".

Mounting methods

Standard mounting is two D-rings, one at either end of the display. 1/4-20 nuts on the bottom of the unit for attaching feet or wall bracket. The feet or wall brackets are NOT included and may be ordered separately. The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.

Documentation

Cutsheet
