4-Digit 2-1/3" Digits Display (dsp254ss_rygb)

Hover over image to zoom

  • Image 1
$698.00
SKU:
dsp254ss_rygb
Weight:
4.40 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout

 Product Description

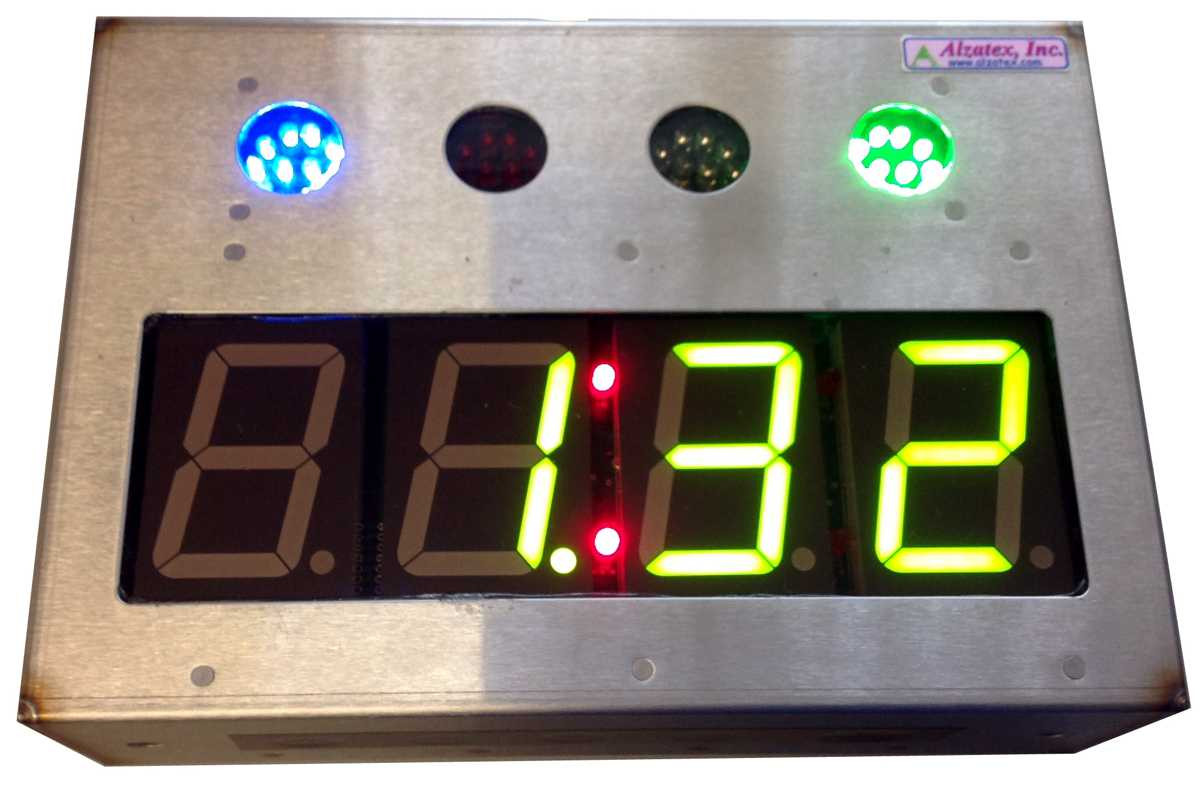

4-Digit Display, 2-1/3" Digits, RYGB indicator lamps in a waterproof stainless steel enclosure.

Features

    Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.
    Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.
    Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.
    4-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.
    4-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Specifications

    Two RJ45 modular connectors for RS422 serial data transmission and reception.
    Two RJ11 modular connectors for accessories.
    RJ11 modular connector for remote Start, Stop and Reset inputs.
    Power connector (2.1x5.5mm).
    Test button for testing and configuration.
    Power requirements: 10-15VAC or 12-20VDC.
    Current consumption: 80mA maximum per digit.
    Construction: Stainless steel enclosure with transparent acrylic front windows.
    DSP254SS_RYGB Dimensions: 10" x 7" x 3".

Documentation

Cutsheet
