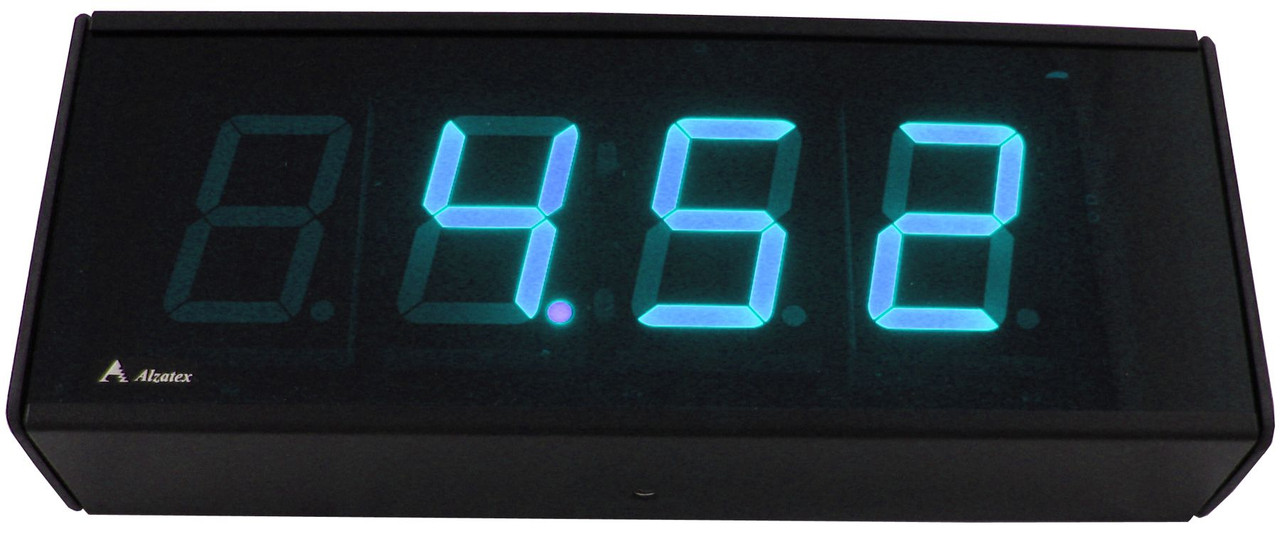

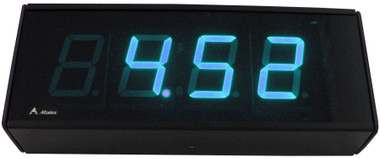

Digital 2-1/3in High Blue Digits Display (dsp254b_blu)

Hover over image to zoom

  • Image 1
$399.00
SKU:
dsp254b_blu
Weight:
2.90 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout

 Product Description

Four-Digit Display, 2-1/3 inch High Blue Digits, Solid-Segments, Metal Frame.

Features

  • Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.
  • Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.
  • Connect two or more TimeKeepers™ together. One becomes the Timer, and the others become remote Displays.
  • Four-Digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.
  • Four-Digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Specifications

  • Two RJ45 modular connectors for RS422 serial data transmission and reception.
  • Two RJ11 modular connectors for accessories.
  • RJ11 modular connector for remote Start, Stop and Reset inputs.
  • Power connector (2.1x5.5mm).
  • Test button for testing and configuration.
  • Power requirements: 10-15VAC or 12-20VDC.
  • Current consumption: 80mA maximum per digit.
  • Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
  • DSP254B_BLU Dimensions: 11" x 4.5" x 2.5".
