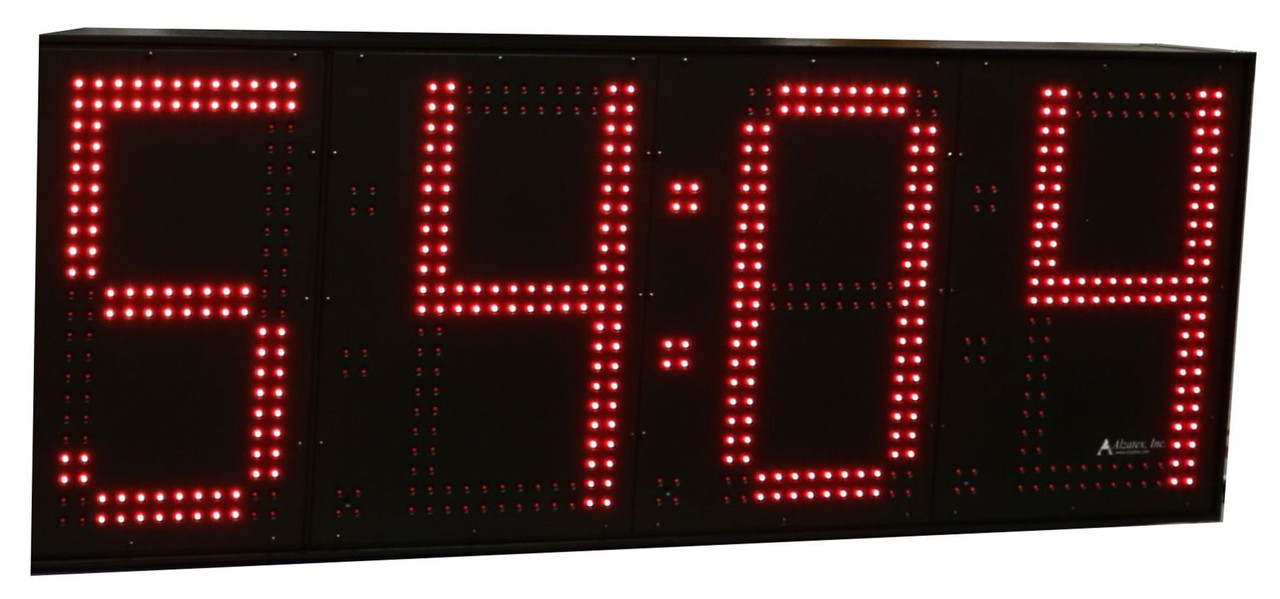

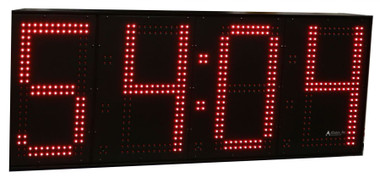

4-Digit LED Display, 15" Digits (dsp1504b)

Hover over image to zoom

  • Image 1
$1,650.00
SKU:
dsp1504b
Weight:
40.00 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout

 Product Description

4-Digit Display, 15" High Digits, Super Bright Red LEDs, Metal Frame.

Features

    4-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.
    4-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Features with external keypad

    Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.
    History memory records the 64 most recent events.
    Connect two or more TimeKeepers together. One becomes the timer and the others become Remotes.
    Can be powered from DC power or from external 12V battery (see Options).

Specifications

    Two RJ45 modular connectors for RS422 serial data transmission and reception.
    Power connector (2.1x5.5mm).
    Test button for testing and configuration.
    Connector for optional external battery (see Options).
    Power requirements: 10-15VAC or 12-20VDC.
    Current consumption: 640mA maximum per digit.
    Construction: ABS Plastic enclosure with black powder coated metal front.

Documentation

Cutsheet
